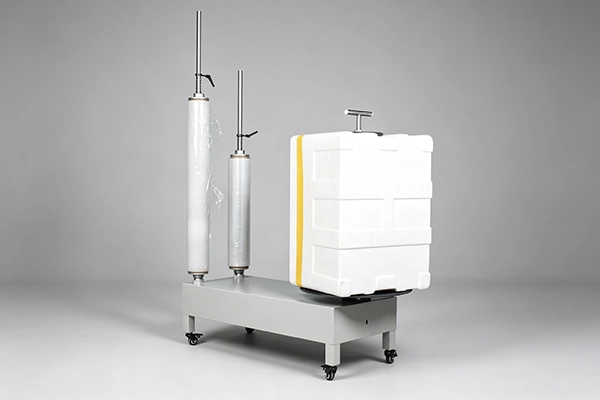

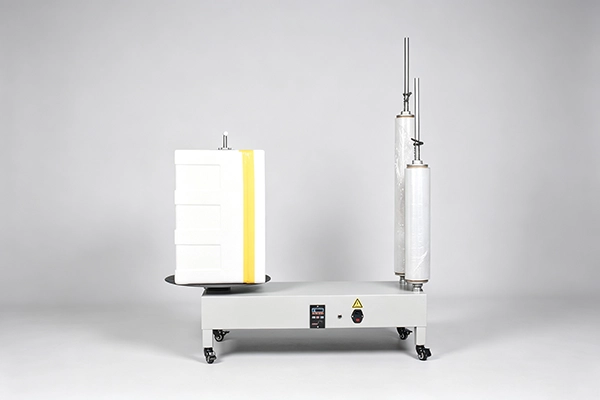

Semi Automatic Stretch Wrapper
Chendun Manual Mobile Stretch Wrapper — Portable No‑Power Pallet Wrapping Machine
Semi Automatic Stretch Wrapper
This semi-automatic stretch wrapper adopts dual film-rack design, equipped with frequency-conversion speed regulator, manual pressure turntable and foot pedal switch. It is widely used for cartons, foam boxes and small-size cargo wrapping in warehouse, logistics and packaging workshop
Main Features

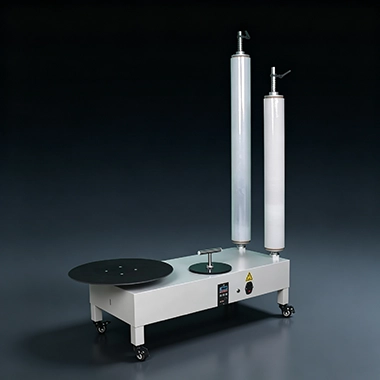

Dual Film-Rack Structure
Equipped with two film mounting shafts, you can install two different specification stretch films simultaneously, switch according to wrapping requirement without frequent roll replacement.

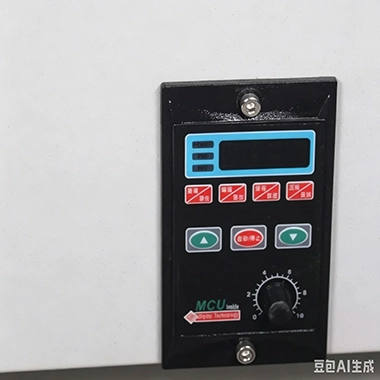

Frequency Speed Governor
Standard frequency converter, stable low-speed torque, soft start, precise rotating speed adjustment. Better performance than ordinary voltage speed controller.

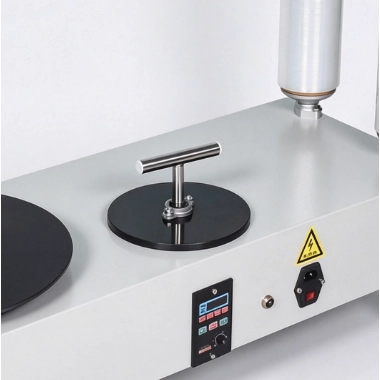

Manual Pressure Turntable
Comes with hand-press auxiliary turntable. Practical for light cargo fixing, higher efficiency compare with pneumatic press-top for small box wrapping.

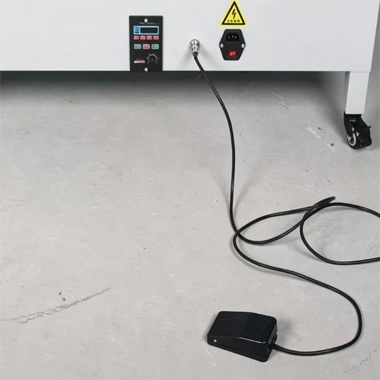

Foot Pedal Switch Control
Step-on to rotate, release to stop. Free your hands during film winding operation, convenient for single-person operation.

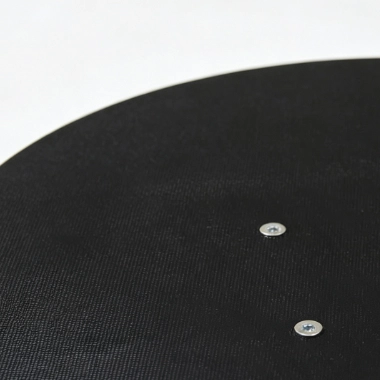

Anti-Slip Rubber Turntable Surface
Carbon steel heavy-duty turntable with rubber non-slip surface, durable and non-deformable, support maximum 100kg cargo weight.

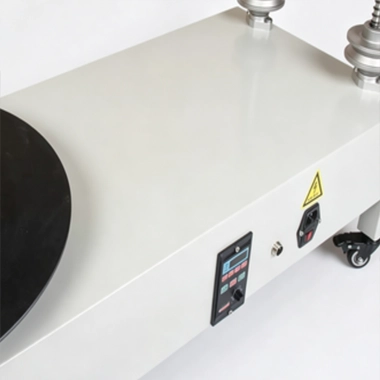

Mobile Caster & Anti-Rust Cabinet
Four moving casters for flexible site transfer. Polyester spray painting shell, resist water splash and prevent rusting for long-term workshop use.
Wide Industry Applications
This semi-automatic stretch wrapper is widely used for carton boxes, foam containers, small pallet goods packing for e-commerce warehouse, logistics distribution center, food packaging workshop, express delivery packaging station.
Standard Specifications
| Item | CD600 | CD700 | CD750 | CD800 Series | CD1000 Series |
|---|---|---|---|---|---|
| Press‑top Type | Manual pressure turntable | Manual pressure turntable | Pneumatic | Electric | Electric |
| Turntable Diameter(cm) | 40 | 50 | 50 | 50 | 50 |
| Max Load(kg) | 100 | 100 | 100 | 100 | 100 |
| Machine Net Weight(kg) | 30 | 60 | 85 | 92‑100 | 102‑110 |
| Voltage | 220V | 220V | 220V | 220V | 220V |
| Applicable Goods Size(cm) | 70*70*70 | 70*70*70 | 70*70*70 | 80*80*80 | 100*85*85 |
| Machine Dimension(cm) | 90*40*145 | 94*55*150 | 105*55*190 | 115*54*160 | 115*54*188 |
